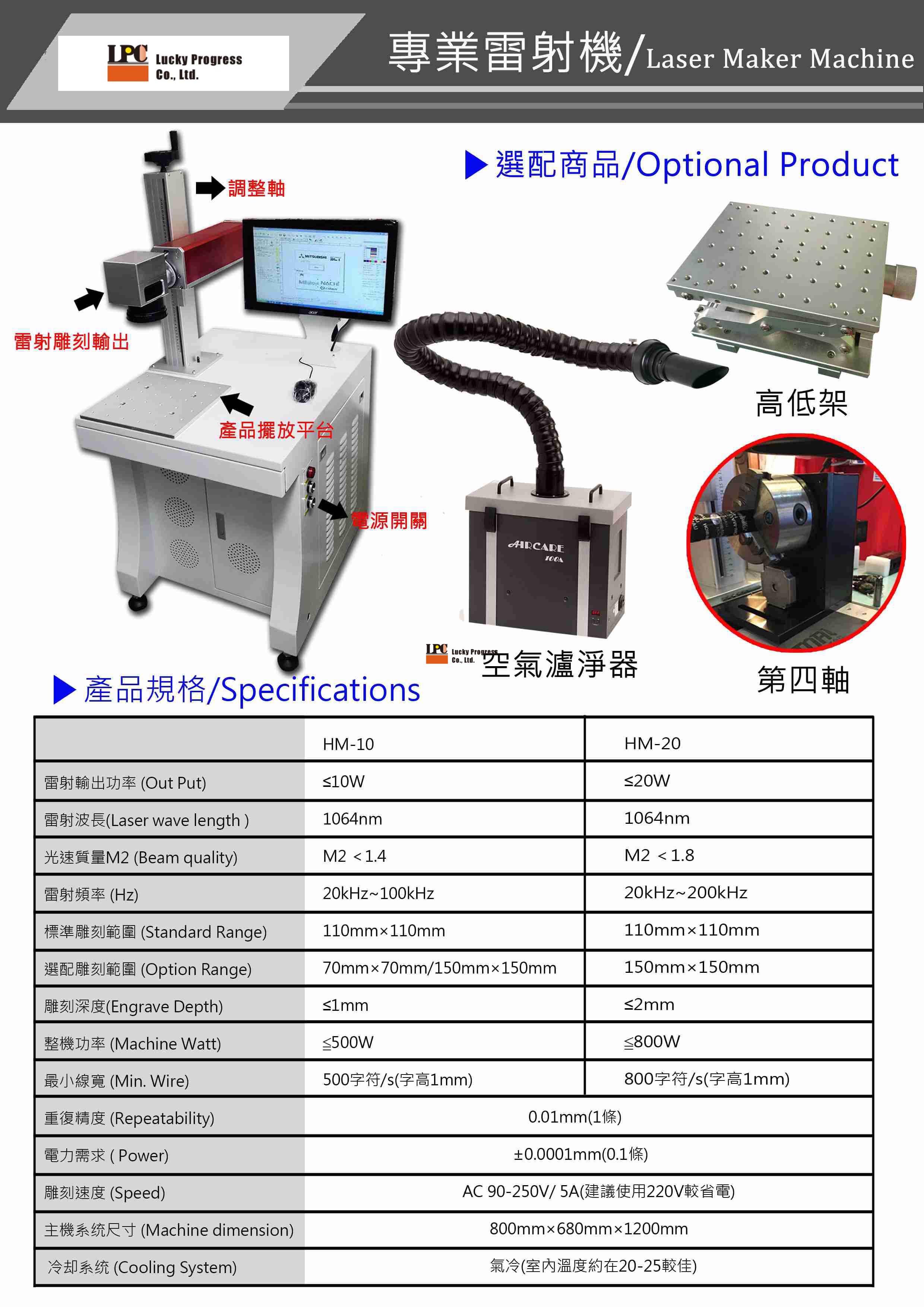

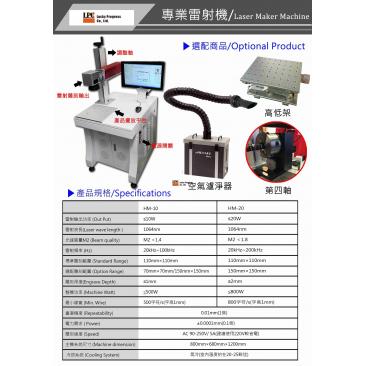

Laser Marking Machine
Description
10W / 20W Hot sale stainless steel / carbon steel /iron/ aluminum / copper/ brass laser marking
HM-10 HM-20
Out Put ≤10W ≤20W
Laser wave length 1064nm 1064nm
M2 (Beam quality) M2 < 1.4 M2 <1.8
Hz 20kHz ~ 100kHz 20kHz ~ 100kHz
Standard Range 110mm x 110mm 110mm x 110mm
Option Range 70mm x 70mm / 150mm x 150mm
150mm x 150mm
Engrave Depth ≤1mm ≤2mm
Machine Watt ≤500W ≤800W
Min. Wire 500/s (1mm) 800/s (1mm)
Repeatability 0.01mm
Speed AC 90-250V/5A
Machine dimension 800mm x 680mm x 1200mm
